L-Shaped Touch Screen
The L-shaped touch screen is a smart control interface designed for seamless integration into modern automated environments. With a sleek, high-resolution capacitive touch and robust communication
-
Powered by ARM Cortex-A55 architecture, 1.8GHz main frequency
Runs on Android 11.0 with 4GB DDR4 RAM and 32GB eMMC Flash
10-inch display with 1280×800 resolution (16:10), desktop screen design
Dual-mode functionality: can operate as a touch screen central controller or user terminal
One mini HDMI output port.
Secure access to the system management web page via password protection
Supports GUI design and programming using IDE design tools
Compliant with standard communication protocols: TCP/IP, HTTP, UDP, WebSocket
Equipped with 1 Gigabit POE LAN port (up to 1 Gbps)
Dual power options: Poe and DC input
WiFi 802.11b/g/n
4 x USB for serial (RS232 Level, USB for serial (TTL Level, USB 2.0 host USB 3.0 host
Factory reset is supported for easy troubleshooting and setup restoration
Safety: CE,FCC,RoHS,(ISO9001:2015,14001:2015,45001:2018, 27001:2022 -IAF Certified)
Specifications
Operation System
Android 11
RAM
4GB DDR4 RAM
CPU
ARM Cortex-A55 1.8GHz
Flash Memory
32GB EMMC
Resolution
1280*800
Touch Type
Capacitive
Operating temperature
0°C ~ 40°C
ESD Protection
IEC 61000-4-2
Debug
1x USB
.png)
WHERE TO USE
Meeting Rooms & Boardrooms
Manage displays, projectors, microphones, cameras, speakers, and lighting from a single interface.
Government & Administrative Offices
Initiate presentations or video conferences instantly with pre-configured scene presets.
Corporate Events & Summits
Display real-time room booking information or integrate with platforms like Microsoft Exchange or Google Calendar.
Classrooms &
Lecture Halls
Seamlessly switch between inputs such as laptops, video conferencing systems, and media players.
Government & Administrative Offices
User authentication and role-based access for secure control of AV resources
Courtrooms
Control blinds, lights, and temperature settings for optimal courtroom comfort
Resources
Valuable resources related to Touch Panel, covering learning materials, guides, and tools you can refer to for product knowledge, integration ideas, and system design.
User Manual

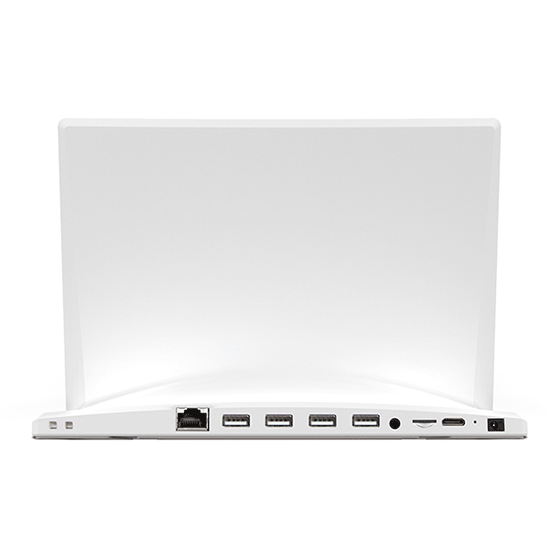

SV-LRC10
The 10’’ L-shaped touch screen by Solvision serves as a versatile and intuitive control interface for managing all AV and environmental systems in spaces like homes, boardrooms, classrooms, courtrooms, and command centres. It eliminates the need for multiple remote controls, wall switches, apps, or computer screens by offering a centralised, fully-customizable solution. With user-friendly controls, real-time feedback, and status displays, the touch screen allows seamless control over audio, video, lighting, shades, HVAC, security, and more—streamlining technology interaction for enhanced convenience and efficiency.
