4K UHD Video Conference Terminal
4K UHD Video Conferencing Terminal designed for enterprise meetings, remote education, telemedicine, command centers, and other mission-critical communication environments.
-
4K UHD Video Conferencing – Supports dual 4K@30fps video for high-quality professional conferencing.
-
SIP & H.323 Compatible – Supports industry-standard protocols and integration with platforms such as Zoom, Microsoft Teams and Webex.
-
H.265/HEVC Video Compression – Delivers high-definition video with optimized bandwidth utilization, supporting 4K video at bandwidths up to 2 Mbps.
-
Built-in MCU – Enables multipoint conferencing without requiring an external MCU/server, with upgrade options for 1+3, 1+5 and 1+8 sites.
-
Dual 4K Multi-Tasking – Supports simultaneous video interaction, content sharing and presentation collaboration.
-
Remote & Local Recording – Supports PC-based remote recording/live broadcasting as well as USB-based local recording.
-

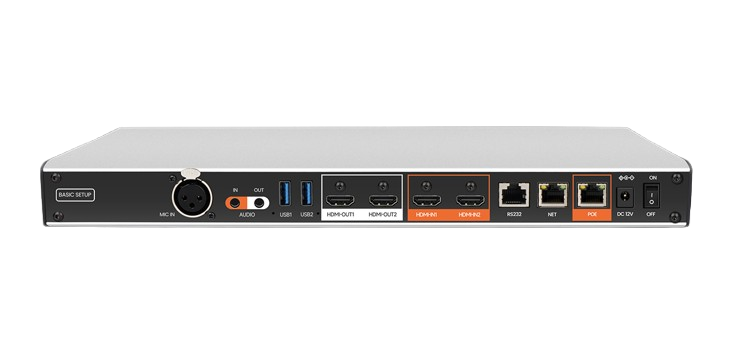

Multiple Connectivity Interfaces – Provides HDMI, USB 3.0, RS232, PoE, RJ45, microphone and audio interfaces for flexible system integration.
-
Advanced Audio Processing – Built-in AEC, AGC and ANS for improved speech clarity and reduced echo/noise.
-
Wireless & Smart Features – Optional Wi-Fi, wireless screen projection, AI tracking, AI noise reduction, voice-to-text and 4K dual-screen display.
-
Professional Enterprise Design – Compact terminal with DC 12V operation, up to 54W power consumption and support for CE, RoHS and FCC standards.
Specifications
Resolution
4KP30
Operation System
Android
IP
64kbps~10Mbps
Dual Stream Protocol
ITU-T H.239, BFCP
Image Properties
SupportPIP, POP Equal display mode
Video Input Interface
2 x HDMI 1 x USB
Audio Input Interface
5
Video OutPut Interface
4
Built-in MCU
1 +3, 1+5, & 1 +8
WHERE TO USE
Meeting Rooms & Boardrooms
Automates and controls projectors, displays, lights, microphones, video conferencing systems, and more.
Allows seamless operation via a single touch panel or tablet.
Auditoriums & Seminar Halls
Manages large-scale AV setups including multiple screens, speakers, stage lighting, and streaming devices.
Ensures synchronized control and smooth event execution.
Smart Homes
Automates lighting, curtains, entertainment systems, HVAC, and security from one interface.
Enhances convenience, comfort, and energy efficiency.
Classrooms &
Lecture Halls
Controls smart boards, document cameras, AV switching, and audio systems.
Simplifies operation for teachers through programmable presets.
Retail & Hospitality
Controls digital signage, background music, lighting, and display content across zones or locations.
Supports scheduling, automation, and quick manual override.
Courtrooms
Manages microphones, displays, recording systems, and remote video links securely and reliably.
Ensures smooth proceedings and centralized AV control.
Resources
Valuable resources related to AV Control Processors—covering learning materials, guides, and tools you can refer to for product knowledge, integration ideas, and system design.
User Manual
SV-EXP800
SV-EXP800 is a professional-grade video conferencing terminal engineered for enterprise collaboration, remote education, telemedicine,
emergency command centres, and mission-critical communications.
It supports industry-standard communication protocols including SIP and H.323, along with advanced video compression technologies H.264 and
H.265, ensuring high-definition video quality with optimised bandwidth utilisation.
Equipped with dual-channel HDMI video input and output, the SV-EXP800 enables seamless multi-screen interaction, content sharing, and
enhanced multi-task collaboration, making it ideal for modern, high-performance conferencing environments.
